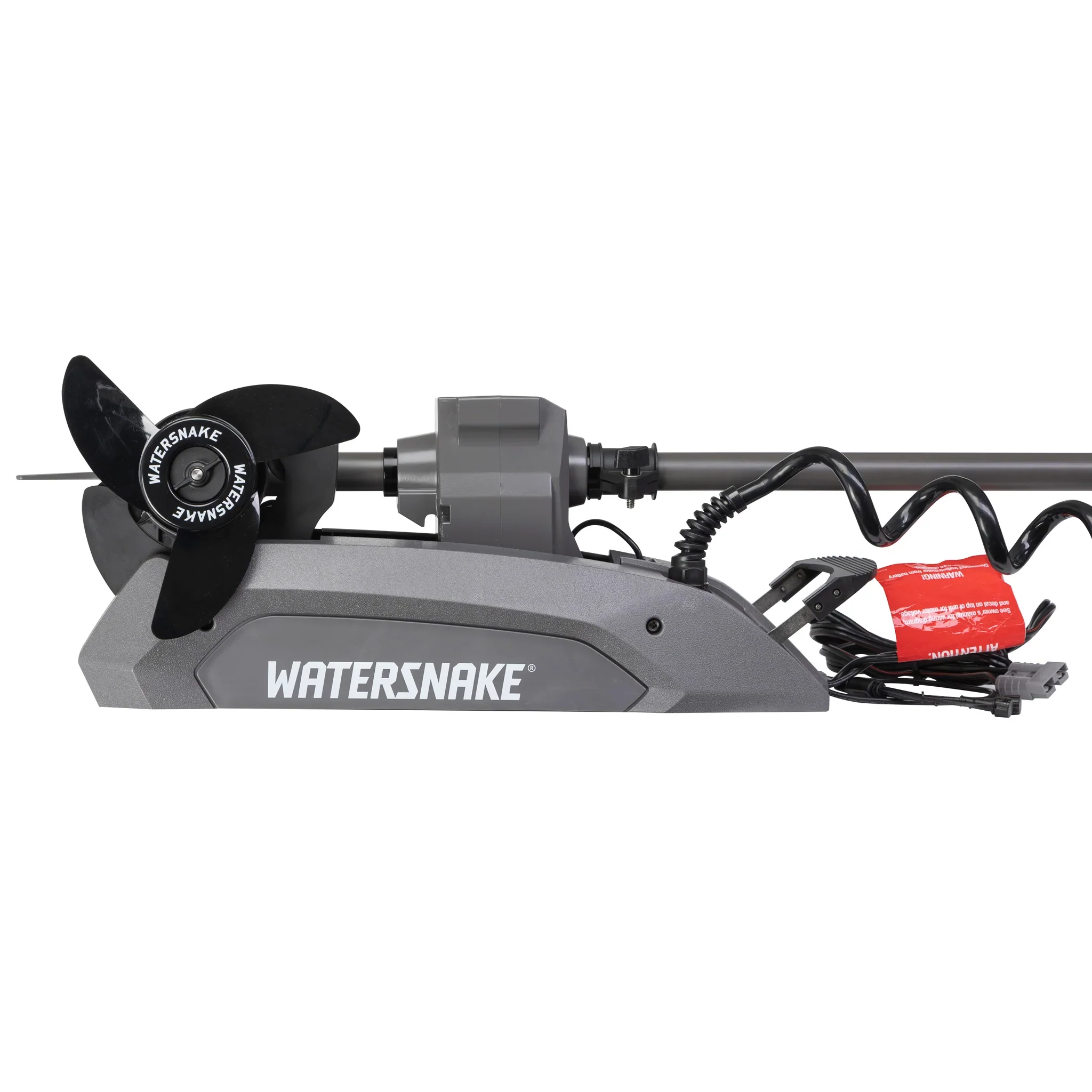

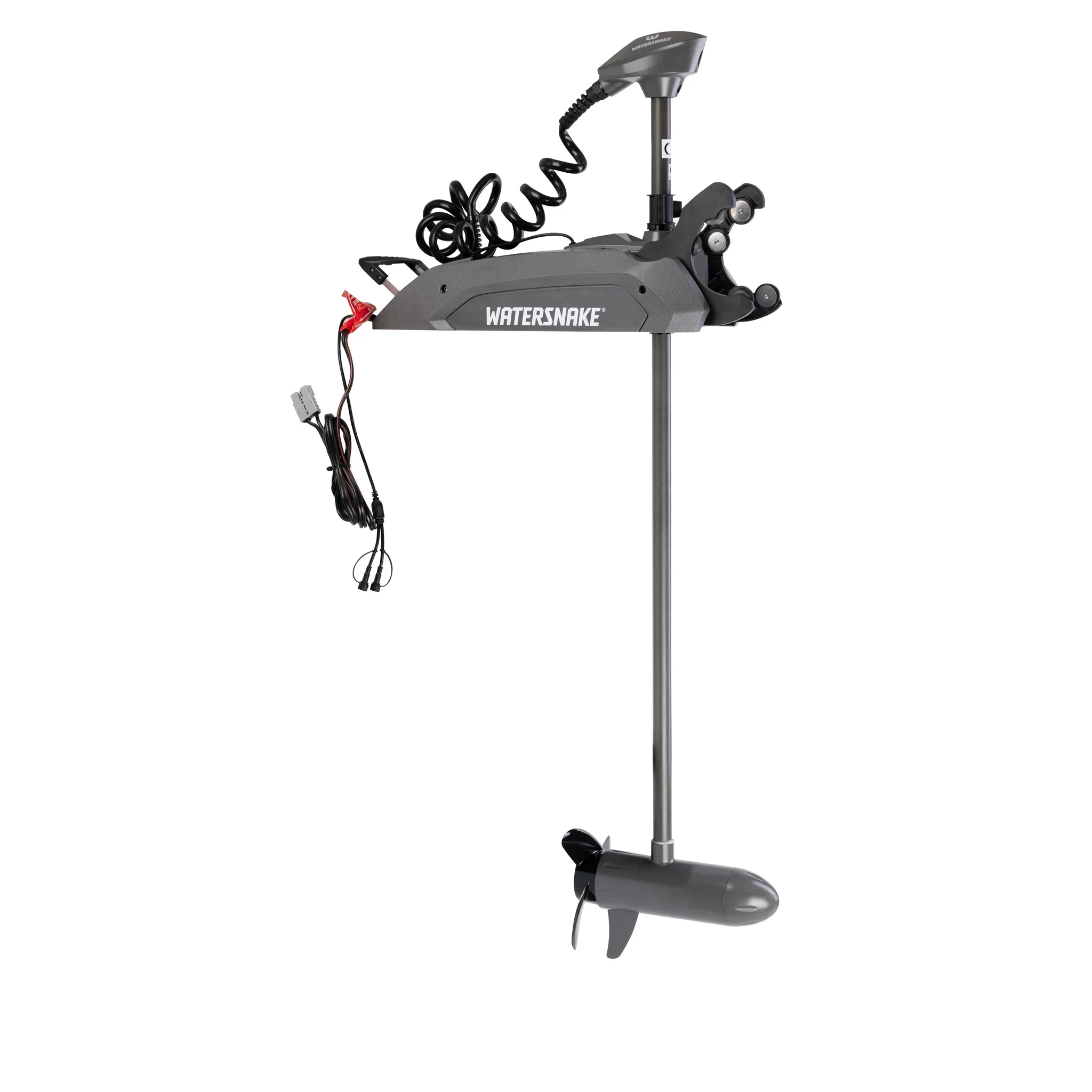

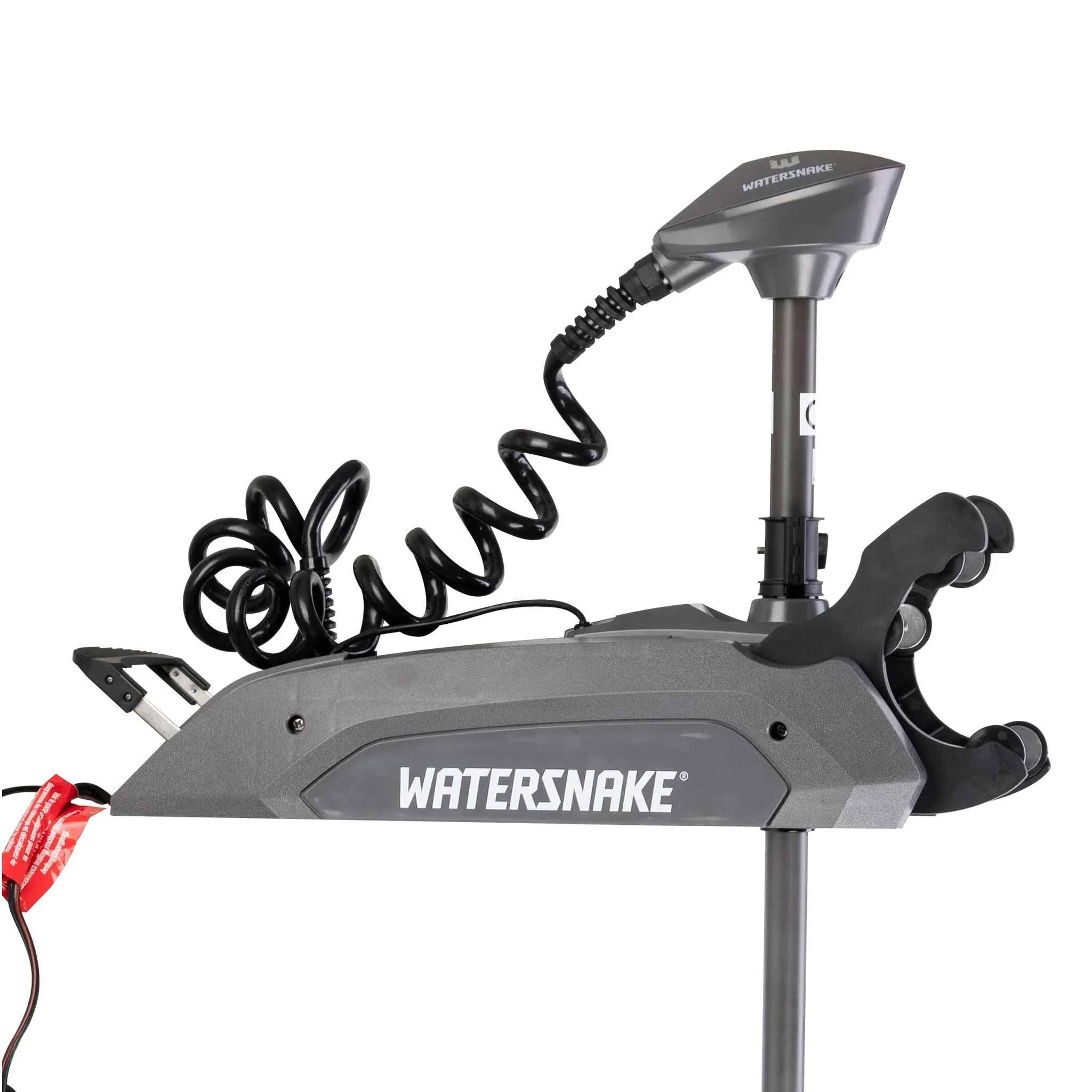

Watersnake Stealth Full GPS Anchor Electric Motor

The Watersnake Stealth GPS series delivers fully integrated navigation features for anglers who want to fish smarter and cover more water with less effort. Built on the same rugged, saltwater-ready platform as the Stealth X, the Stealth GPS adds intelligent modes that take total control of your speed, heading, and route. Whether you’re tracking a shoreline, retracing a drift, or holding tight on a mark, the Stealth GPS has you covered.

The Watersnake Stealth Bow Mount Electric Motor delivers powerful performance in a compact and energy-efficient design. Built to run on a single 12V battery, it offers up to 65lb of thrust—ideal for powering most trailer boats through extended outings. Designed for saltwater use, it features a rugged composite shaft, sacrificial zinc anode, and encapsulated driver module for enhanced durability.

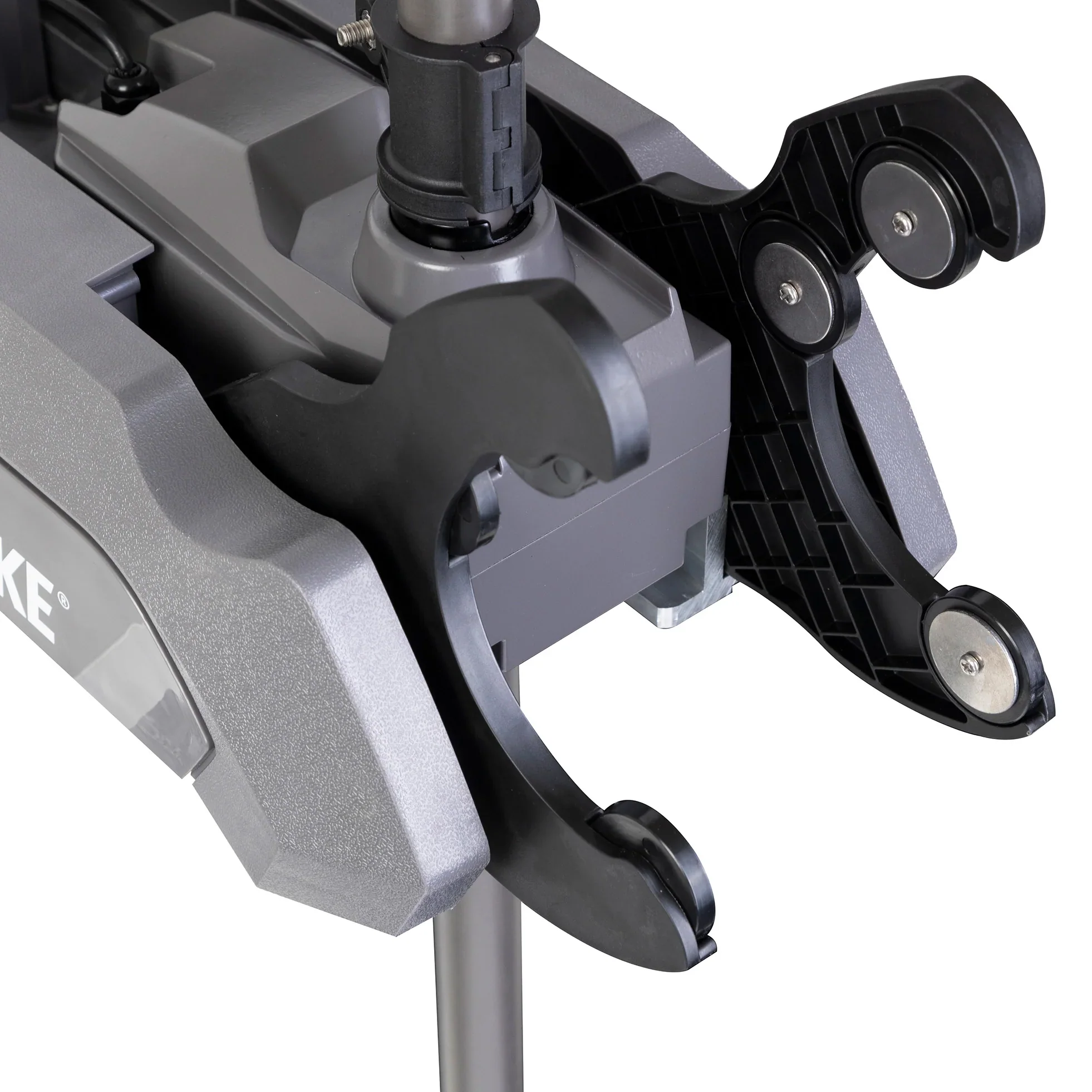

The upgraded mounting bracket allows for smoother deployment and stowing, with large cradle hooks securing the motor firmly when not in use. Wireless control is made easy with the handheld remote fob, and the motor is compatible with an optional Gen 3 foot controller for added flexibility. Anderson plug connectors simplify battery setup, while built-in voltage protection up to 14.5V eliminates the need for a circuit breaker. With digital variable speed control, a weedless 3-blade propeller, and stainless steel shaft, the Stealth motor is engineered for reliable and efficient operation on the water.

Features:

- Anchor mode hold, Cruise mode, Track recording, Navigate mode
- Up to 65lb thrust powered by a single 12V battery
- Saltwater-ready with composite shaft and zinc anode
- Wireless handheld remote for full control
- Compatible with 12V LiFePO4 lithium batteries
- Upgraded bracket for easier deployment and stowing
- Stronger and faster turning box
- Anderson plugs for quick battery connection
- Efficient digital variable speed control
- Built-in voltage protection up to 14.5V
- Weedless 3-blade propeller
- Stainless steel propeller shaft
- Compatible with optional Gen 3 foot controller

Specifications:

MODEL	Stealth GPS 54/48	Stealth GPS 65/54	Stealth GPS 65/60	Stealth GPS 65/66
CODE	55326	55327	55328	55329
THRUST	54lb	65lb	65lb	65lb
VOLTS	12V	12V	12V	12V
SHAFT	48" (121cm) Composite	54" (137cm) Composite	60" (152cm) Composite	66" (167cm) Composite
MOUNTING TYPE	Bow mount bracket	Bow mount bracket	Bow mount bracket	Bow mount bracket
STEERING CONTROL	Wireless handheld remote and full GPS	Wireless handheld remote and full GPS	Wireless handheld remote and full GPS	Wireless handheld remote and full GPS
SPEEDS	Efficient digital variable	Efficient digital variable	Efficient digital variable	Efficient digital variable
MAX AMP DRAW	50A	43A	43A	43A
MAX POWER OUTPUT	290W	350W	350W	350W
RATED PROP RPM	1350rpm	1400rpm	1400rpm	1400rpm
MOTOR WEIGHT	17.5kg	18.5kg	19kg	19.5kg
VOLTAGE PROTECTION	Protected up to 14.5V. No circuit breaker or fuse required.	Protected up to 14.5V. No circuit breaker or fuse required.	Protected up to 14.5V. No circuit breaker or fuse required.	Protected up to 14.5V. No circuit breaker or fuse required.
SHAFT DIA.	1.2 Inches (30mm)	1.2 Inches (30mm)	1.2 Inches (30mm)	1.2 Inches (30mm)
PROPELLER	3-Blade (94mm pitch)	Reinforced Nylon 3-Blade (94mm pitch)	Reinforced Nylon 3-Blade (94mm pitch)	Reinforced Nylon 3-Blade (94mm pitch)
GPS CAPABILITY?	Full GPS	Full GPS	Full GPS	Full GPS
FOOT CONTROL COMPATIBILITY?	Yes, optional accessory	Yes, optional accessory	Yes, optional accessory	Yes, optional accessory
NAV SENSOR COMPATIBILITY?	Yes, optional accessory	Yes, optional accessory	Yes, optional accessory	Yes, optional accessory
REQUIRED BATTERY	12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use	12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use	12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use	12V Deep Cycle or 12V LiFePO4 Lithium up to 14.5V in use
SUGGESTED BATTERY CAPACITY	100Ah or larger	100Ah or larger	100Ah or larger	100Ah or larger
