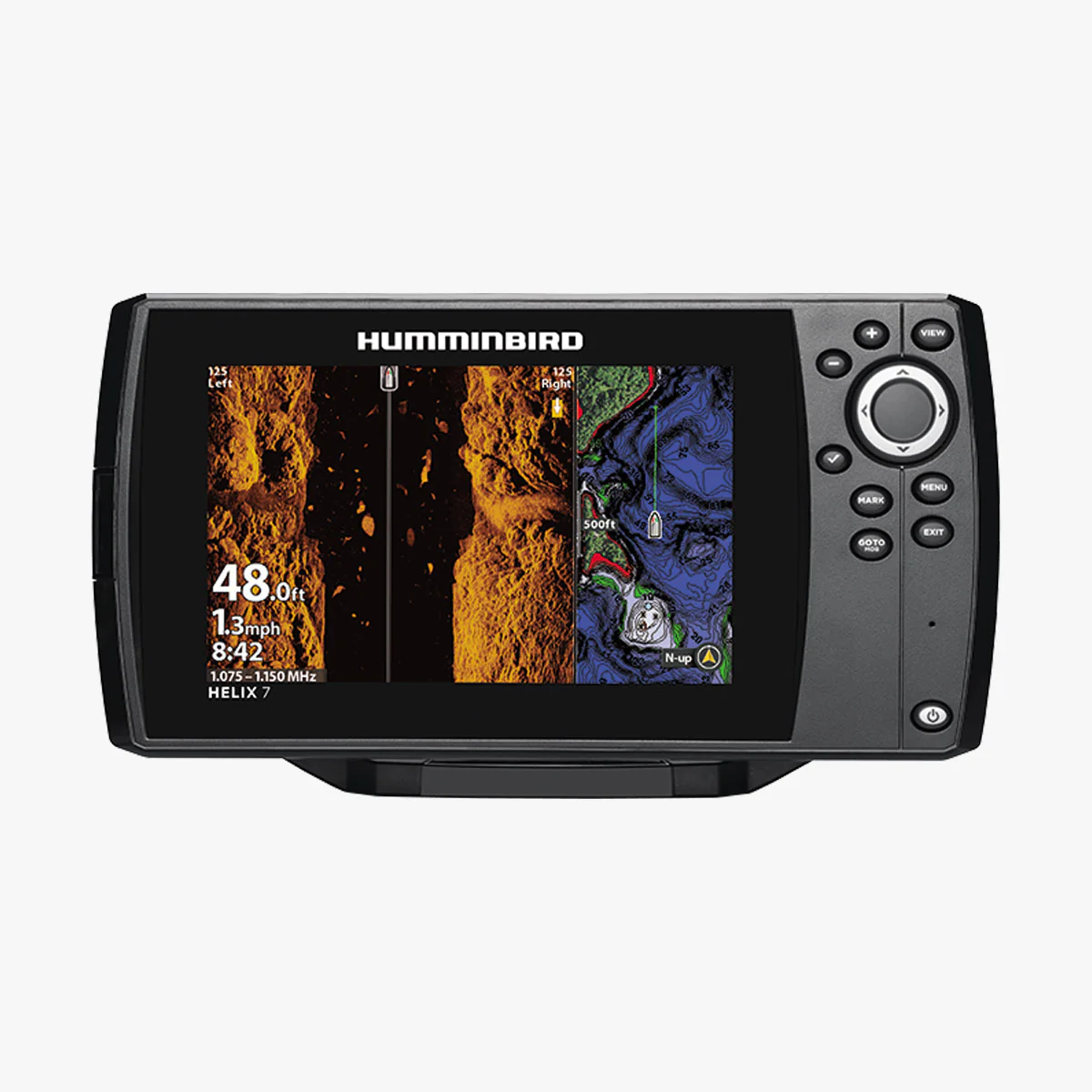

Humminbird Helix 7 CHIRP MEGA SI GPS G3N Non Networking 104562

The HELIX 7 CHIRP MEGA SI GPS G3 fish finder features MEGA Side Imaging, MEGA Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, GPS and Humminbird Basemap built-in. The 7″, ultra-wide display gives you ample room to view the many pre-loaded split screen view options.

Note: Non Networking - no Ethernet networking available on model 104562

Features

- MEGA Side Imaging: See the world below like never before with crystal-clear viewing out to 125 feet on either side of your boat. You'll unlock new details with up to 3X more output than standard Side Imaging sonar.

- MEGA Down Imaging: Get unprecedented underwater clarity with coverage down to 125 feet below your boat. You'll unlock new details with up to 3X more output than standard Down Imaging sonar.

- Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.

- SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.

- Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.

- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count

- Includes transducer and mounting hardware, power cable, gimbal mounting bracket.

Specifications

- Series HELIX
- Display Size - Diagonal 7"
- Display Pixel Matrix 800H x 480V
- Sonar-Optional 50 kHz, 50/Low Airmar CHIRP

- CHIRP: Frequencies Supported Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

- CHIRP: Imaging-Frequencies Supported MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz), 455 kHz (440-500 kHz)

- Sonar-Frequencies Supported 50/83/200/455 kHz
- Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- Depth-Down Imaging 480 ft (455 kHz), 75 ft (MEGA)
- Range-Side Imaging (Side-To-Side) 480 ft (455 kHz), 250 ft (MEGA)

- Interface Keypad Control
- Memory Card Slot: Single Micro SD
- Power Draw 800 mA
- Power Input 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS 500 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal

- Mount-Standard Size 10.54" W x 5.8" H x 3.68" D
- Mount-Optional In-Dash Mounting Kit
- Mount-Optional Size 10.54" W x 5.44" H x 1.13" D
- Transducer Included XNT 9 HW MSI 150 T
- Transducer Mount Location Transom

- GPS Chartplotting: Included
- GPS Receiver Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points 2,750, 45, 50/20,000

- 360 Imaging Compatibility: Yes
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: Yes
- Minn Kota Talon Shallow Water Anchor Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Platinum Compatibility: Yes
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- Heading Sensor GPS Compatibility: Yes
- Target Separation: 2.5"
- Upgradable Software: Yes
- View Preset Keys: No
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 16-Bit
- Display Type Color: TFT
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
