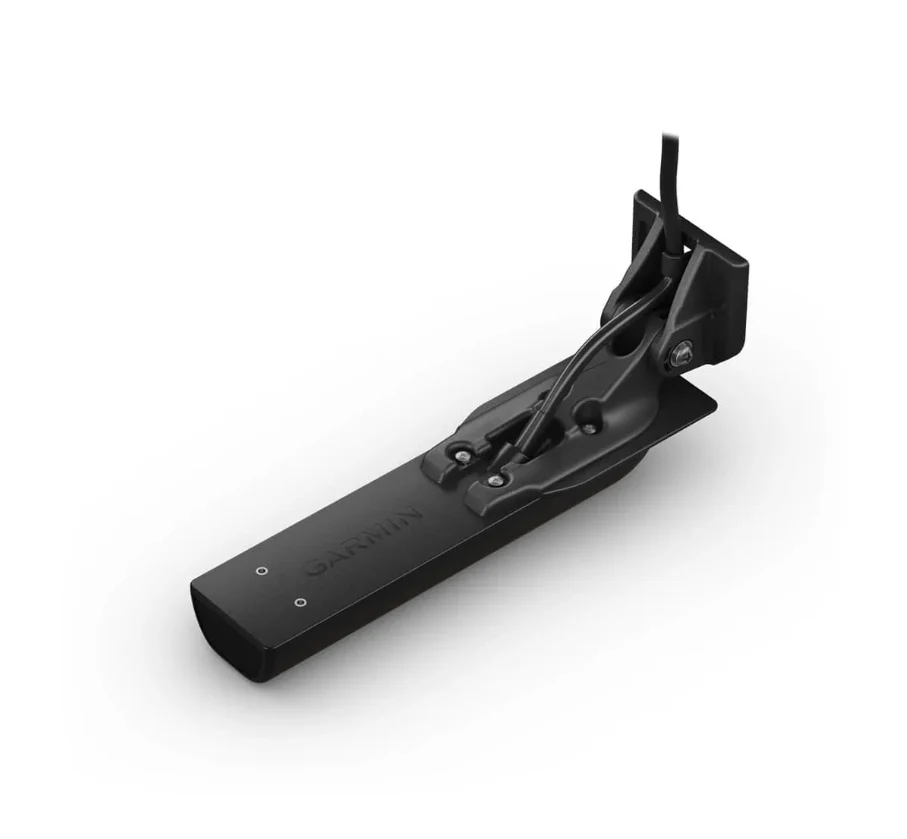

Garmin GT56UHD Transducer

The Garmin GT56UHD-TM Transducer is designed to maximize your time on the water by delivering unmatched sonar versatility and precision. This all-in-one unit combines Ultra High-Definition ClearVü and SideVü scanning sonar with high wide CHIRP traditional sonar, allowing anglers to view fish and underwater structures with stunning clarity.

With support for multiple sonar frequencies, it adapts to various depths and conditions, ensuring optimal performance wherever you fish. Vivid colour palettes enhance visibility, making it easier to distinguish targets and terrain. Built for flexibility, the transducer can be mounted on the transom, trolling motor, or thru-hull, giving you full control over your setup. Whether you're scanning below or beside your vessel, this transducer delivers powerful imaging and reliable data to help you fish smarter.

Features:

- Combines Ultra High-Definition ClearVü and SideVü scanning sonar
- High wide CHIRP traditional sonar provides superior target separation
- Supports multiple frequencies: 455 kHz, 800 kHz, and 1,000 kHz
- Vivid colour palettes enhance visibility of targets and structure
- ClearVü sonar delivers deeper downward imaging with enhanced clarity
- SideVü sonar offers 20% greater range at 1,000 kHz for extended coverage
- Mounting options include transom, trolling motor, and thru-hull
- Designed for freshwater depths up to 244 m with traditional sonar
- Provides depth and temperature readings
- Includes 12-pin connector for advanced sonar integration

Specifications:

Item	Details
Transducer Frequency	Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz, 800 kHz, 1000 kHz
Transducer Power	Traditional 350 W; ClearVü/SideVü 500 W
Transducer Beamwidth	Varies by frequency; up to 1.1 x 52
Maximum Depth	Traditional: 244 m; ClearVü: 122 m; SideVü: 152 m
Cable Length	7.62 m
Depth/Speed/Temperature	Depth and temperature
Number of Pins	12
Supported Transom Angles	0°–70°
Length	218.5 mm
Width	51.8 mm
Height	27.7 mm
