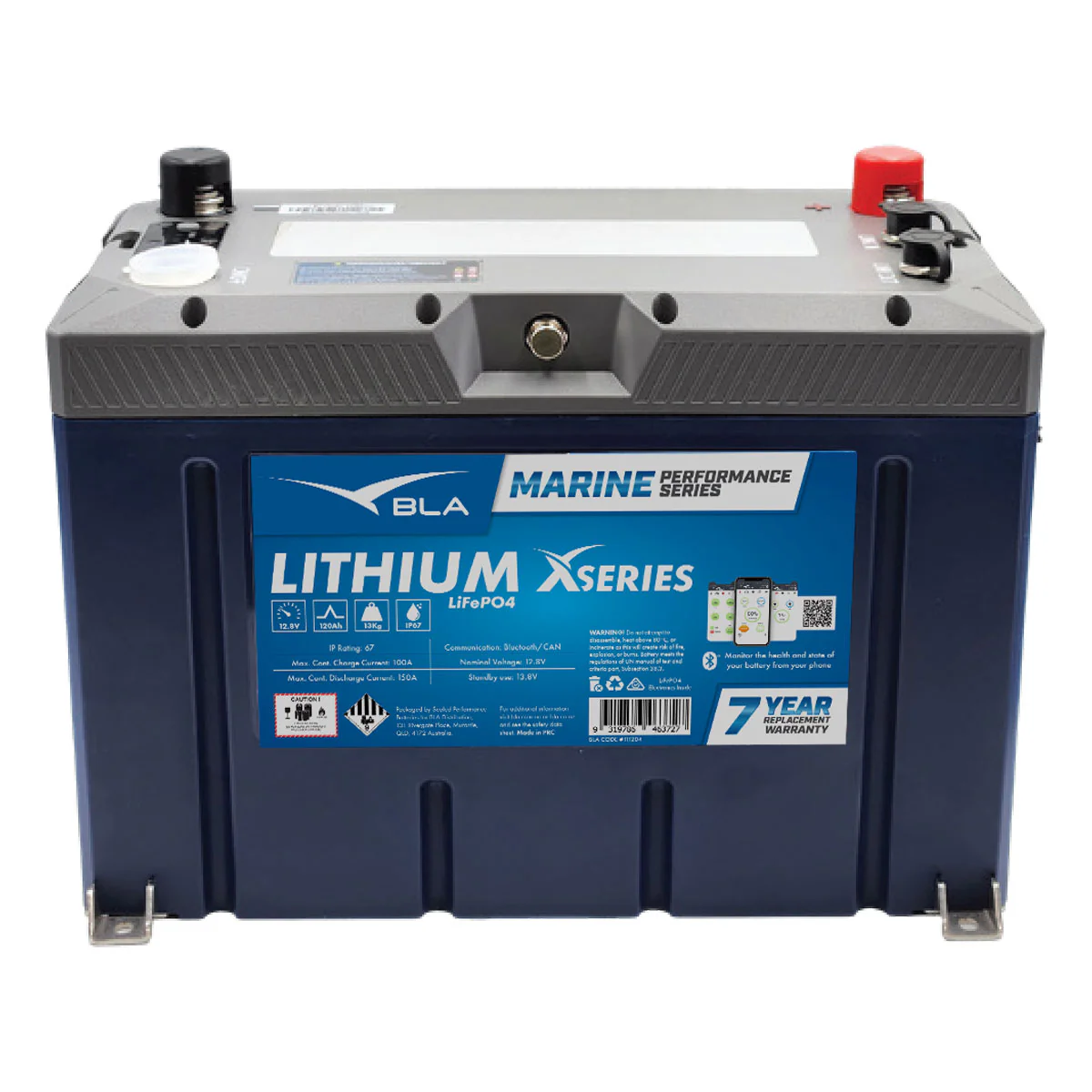

BLA Performance Lithium Deep Cycle X Series Battery 12V
The all-new BLA Marine Performance X Series takes deep-cycle battery technology to the next level. Utilizing advanced Lithium Iron Phosphate (LiFePO4) chemistry, this battery delivers superior performance while expanding communication capabilities through Bluetooth and CAN bus. The smart Battery Management System (BMS) enables seamless connection in series for 24V or 36V setups, ensuring independent monitoring of each battery for optimal functionality.
This battery sets a new standard in marine power solutions, ensuring reliability and efficiency for demanding applications.
Features:
- Extended Cycle Life: More than 3000 cycles at 100% Depth of Discharge (DoD), offering up to ten times the lifespan of AGM batteries.
- Enhanced Safety & Stability: Integrated BMS protects against overcharging, over-discharging, temperature fluctuations, and short circuits for maximum safety.
- Advanced Communication Options: Bluetooth and open CAN bus provide easy connectivity with compatible devices.
- High Energy Density: Weighs less than half of an AGM battery, reducing overall application weight.
- Detachable Mounting Feet: Stainless steel feet can be easily attached or removed with a screwdriver for secure installation.
- Durability in Harsh Conditions: IP67-rated, ensuring protection against dust and water in Australian and New Zealand environments.
- Expanded Power & Customization: Allows configuration of up to 4 batteries in series, 16 in parallel, or a combination of 4 in series and 4 in parallel.
- Increased Discharge Capacity: Maximum discharge upgraded to 150A on the 120A X Series for higher power output.
Specifications:
| General Specifications | Details |
|---|---|
| Nominal Voltage | 12.8V |
| Terminal | M8 |
| Max. Charge Voltage | 14.5V |
| Standby Voltage | 13.8V |
| Cut-off Voltage | 11V |
| Max. Discharge Current | 150A / 200A |
| Max. Charge Current | 100A / 200A |
| Cycle Life (100% DoD) | ≥3000 |
| Operating Temp - Charge | 0 - 60°C |
| Operating Temp - Discharge | -20 - 55°C |
| Short Circuit Release | Load Release |
| Max. Series/Parallel Configuration | 4S / 16P / 4S+4P |
| Communication | Bluetooth and CAN/RS485 |
| Certification | IEC62619 |
| IP Rating | IP67 |
| Weight (grams) | 15,060 / 23,000 |
| Package Dimensions (L x W x H, mm) | 308 x 168 x 220 / 485 x 172 x 247 |
